15KW Hydroelectric Vertical Francis Turbine Generator For Home
Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.
Micro Francis Turbine Specifications
| Rated Head | 15(meters) |
| Rated Flow | 150(l/s) |
| Efficiency | 85(%) |
| Pipe Diameter | 200(mm) |
| Output | 15000(W) |
| Voltage | 220 or 380(V) |
| Current | 37.5(A) |
| Frequency | 50 or 60(Hz) |
| Rotary Speed | 1500(RPM) |
| Phase | Three(Phase) |
| Altitude | ≤3000(meters) |
| Protection Grade | IP44 |
| Temperature | －25～＋50℃ |
| Relative Humidity | ≤90% |
| Safety Protection | Short circuit Protection |
| Insulation Protection | |
| Over Load Protection | |
| Grounding Fault Protection | |
| Packing Material | Woodenbox |
Generators
Forster Hydro selects only high quality generators to include with our systems, ensuring efficient operation, long life, and low maintenance. In most cases, the rotating speed of the generator is 1800 rpm or slower to maximize longevity and minimize efficiency losses in the drive system.
Governors
Governors can range from relatively simple devices to highly complex systems for larger, grid-connected hydro projects. Regardless of complexity, however, the basic function remains the same: maintain a constant RPM at the generator, and therefore a constant voltage and frequency. We will be happy to discuss your site requirements and recommend the appropriate governor type.
Needle Nozzle Control
If flow changes frequently, the optional needle nozzle can simplify adjustments and eliminate the need to shut down the turbine. It permits infinitely variable flow adjustment, from zero to maximum design flow, while the turbine is running. Forster needle nozzles have stainless steel needles and beaks for extremely long life.

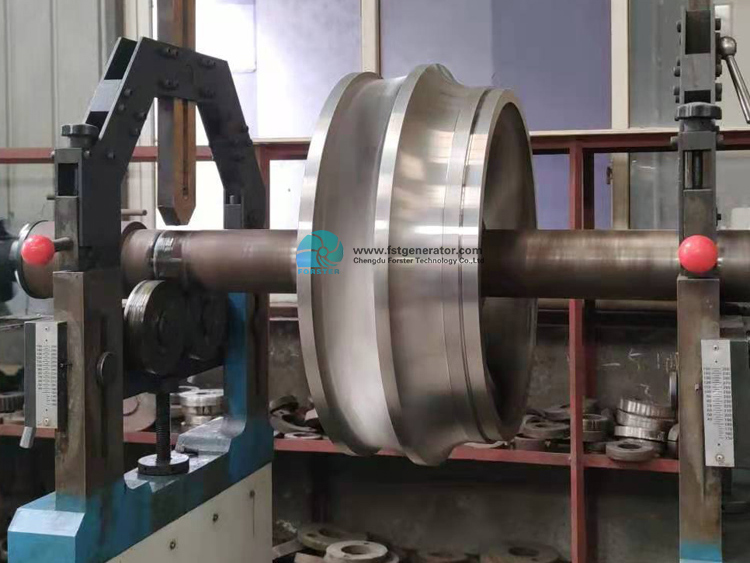

The Francis Turbine adopts dynamic balance check wheel, all stainless steel wheel, with flywheel and brake device

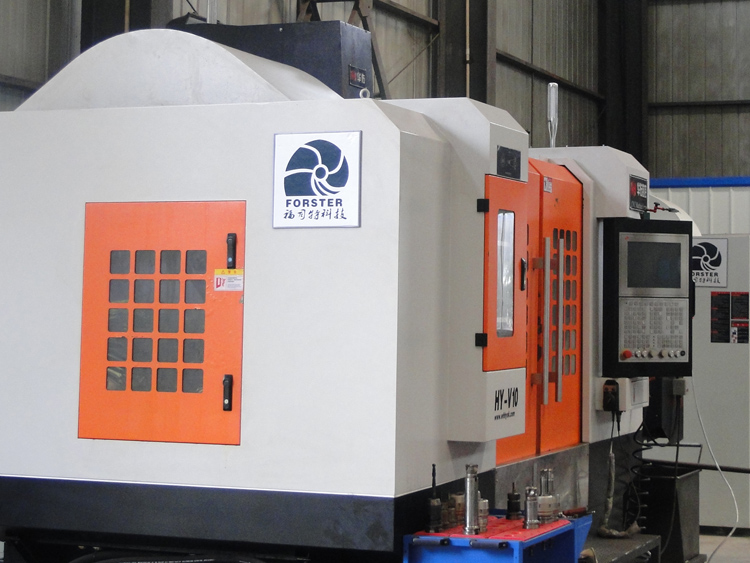

Comprehensive processing capacity. Such as 5M CNC VTL OPERATOR, 130 & 150 CNC floor boring machines, constant temperature annealing furnace, planer milling machine, CNC machining center ect.
